Color Mark Sensor

Category:Color Mark Sensor;Model:Z3J-TS

This series of products named in the following way:


Z3J-TS 2E3


—Light source:
R for red, G for green, B for blue, W for white
Detecting mode Coaxial reflecting
Detecting distance 15mm±2mm
Supply voltage DC10-30V±10 residual ripple <10%
Current consumption Below45inA
Light source Red, green, blue or white, selectable
Light spot Red rectangular lit spot
Detecting angle With light vertical to object, tolerance +/-15
Response time 1ms

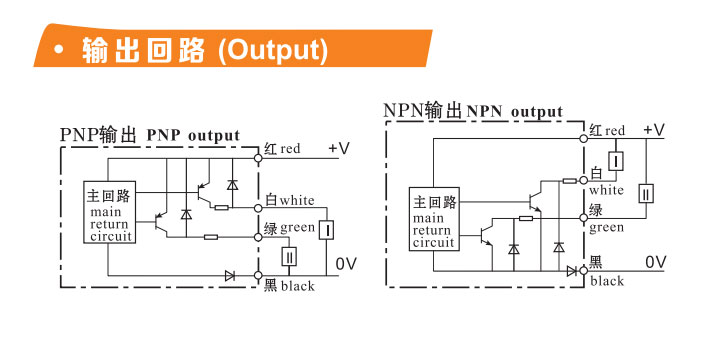

Output mode With both light and dark operations
Output dictator Red LED
Output voltage High level VS-(=<1.5), low level (=<1.2V)
Load current 200mA(max)
Circuit protection device With reverse-polarity protection for Vs, short circuit protection for output.
Switch off automatically when load current >200mA and signal recovers when
load current <200mA, also with wiring error protection.
Sensitivity Adjustable
anti-background light sunlight < 1000 LX incandescent light < 3000 LX
Protection class lp67(humidity and dust proof)
Ambient temperature Operation -15~5°C storage -25~80°C
Housing material plastics
Connection cable 5.4 PVC 4 core protection shielding cable with standard length 2M
Weight About 300g
